Improved bowl depth gauge

Something you definitely don’t want to do when hollowing a bowl is cut too deep. Less disastrous, but still a problem, is not cutting deep enough, because too much wood in the bottom leaves the bowl too heavy. Many turners assess the thickness of the bottom by feel. But on larger bowls, fingers don’t reach far enough. Even calipers, like these, don’t measure the thickness where the chuck prevents access. So a depth gauge can be useful when making bowls.

Parallax error

The simplest depth gauge is just a pencil. You sight across the rim of the bowl, put the pencil in contact with the deepest point, then grip it at a point that is in the same plane as the rim. Then you hold the pencil against the rim and sight across the bottom of the item. This works, but parallax error means it’s not very accurate. And if the chuck jaws are in a recess, you can’t see how deep that recess is.

A sliding dowel set in a crossbar will measure the internal depth more accurately. Such a simple depth gauge is very easy to make, and lots of turners use one. But there is still the same difficulty when assessing the amount of wood remaining in the bottom.

When making this gauge, drill a hole the same diameter as the dowel in a bit of scrap to make the cross bar. Saw a slot along the crossbar, dividing the hole and going an inch or two beyond it. Insert a screw (not visible in the photo below) on each side of the dowel to adjust the grip so the dowel is held with just the right amount of friction.

Make a measuring stick to suit the chuck

Using the dowel gauge with a separate measuring stick can greatly reduce error. Cut a wooden rod to length so that when placed in contact with a suitable fixed point, it extends about one inch beyond the chuck jaws. That fixed point may be most convenient if it is on the headstock, but it need not be as long as the distance from it to the jaws is constant.┬áThe contact point must be far enough off the lathe axis for the rod and dowel to clear the rim of the bowl while they are parallel to the axis. For wider bowls, or if the front of the headstock does not have a vertical surface, something standing on the lathe bed could act as a reference point for the stick, as long as it’s always put in the same position.

Mark a scale with 1/8 inch intervals on the last inch of the rod, beginning exactly level with the outer face of the jaws. You may need a separate rod for each different chuck.

Using the improved depth gauge

Place the crossbar across the rim of the item and adjust the dowel to touch the deepest point. This tells you the internal depth. Move the gauge so the dowel is outside the bowl, with the crossbar still touching both sides of the rim. The crossbar must be long enough to enable this. Put the measuring stick next to the dowel. The scale will then show the thickness of wood remaining above the chuck jaws.

Improved bowl depth gauge

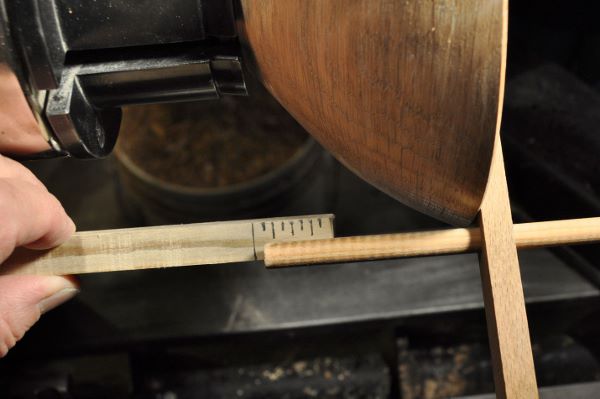

This bowl has 1/8″ of wood remaining above the chuck jaws

You can also use the rod to preset the dowel in the crossbar. When the bar touches the rim, the bowl depth is complete.

If the jaws are in a recess but don’t bottom out in it, or if the inner surface of the recess is not flat, an allowance has to be made.
